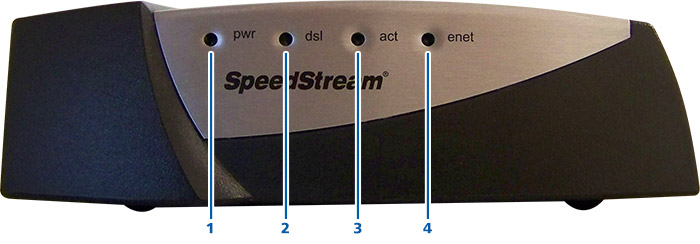

- Front Panel Lights / Function
Key Item Function 1 pwr
Solid – Power is on.
Off – Power is off.
Solid – Ready for Traffic.
Flashing – Searching for Signal.
Off – DSL link not detected.
Flashing – DSL traffic flow.
Off – No network activity.
Solid – Ethernet port connected to LAN.
Flashing – Ethernet Traffic flow.
Off – Power is off. No Ethernet link detected; check hardware ensure that a straight-through (normal) cable is used.

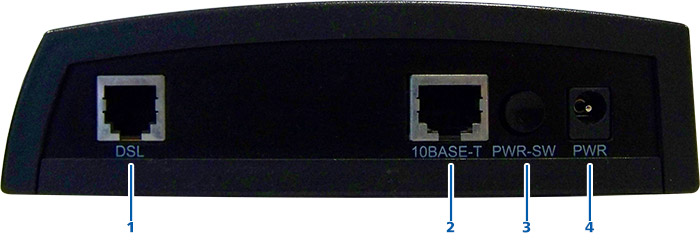

- Rear Panel Function
Key Item Function 1 DSL DSL connection with a phone cord from the phone jack to the modem. 2 10BASE-T Ethernet 10/100 Base-T RJ-45 port, connects to the network card in your computer. 3 Switch On/off toggle switch to control power to the modem. 4 Power DC power adapter connector.
